WildWatch Developer Guide 🦒

Table of Contents

• Introduction
  • Purpose
  • Audience
  • How to use the Developer Guide
  • Legend
• Quick Start
• Design & Implementation
  • System Architecture
  • Main Component
  • UI Package
  • Parser Package
  • Command Package
  • EntryList Package
  • Entry Package
  • Storage Package
• Product Scope
  • Target User Profile
  • Value Proposition
• User Stories
• Non-Functional Requirements
• Manual Testing
• Command Summary
• Glossary
• Acknowledgements

---

Introduction 🐻

Welcome aboard fellow animal lover! We are really excited to have you here! 😉 Wildwatch is a program for a clerk managing wildlife data in a wildlife reserve via the Command Line Interface (CLI). Its main job is to store and present animal data required in everyday operations of the wildlife reserve.

Purpose

This document specifies the architectural and software design decisions in the implementation of the WildWatch.
For a detailed guide on how to use the program and explanations on the individual commands, we have our very own WildWatch User Guide for your perusal.

Audience

The intended audience for this document are developers who would like to look under the hood and understand how WildWatch works, and are looking to introduce new functionalities into WildWatch.

How to use the Developer Guide

• Are you new here?
  No worries, head to the Quick Start page.
• Lost among the pages?
  Head to the Table of Contents to look for the right pages.
• Need help with the functionalities?
  Head to the Features page in the User Guide for detailed guidance.
• Do you have a question for us?
  Head to the FAQ page in the User Guide.
• Do you have a bug to report?
  Head to the Bug Reporting page in the User Guide.
• Do you want a concise summary of all functionalities?
  Head to the Command Summary page for a summary of all commands.
• Not sure what that word meant?
  Head to the Glossary page for its meaning.

⬆ Back to top

Legend

Symbol	Meaning
❗ IMPORTANT	These are important instructions that you should follow.
✏ Note	These are important details that you should take note of.
⬆ Back to top	Click to scroll back up to the Table of Contents.
🐵 🦊 🦁	Animals indicate you have reached a new section.

❗ IMPORTANT

• Capitalized words between angle brackets < > is a field to be filled up appropriately by the user.
  • E.g., delete <INDEX> should be delete 2
• Anything between curly brackets { } is an optional field that may or may not be filled up by the user.
  • E.g., summary {<SPECIES>} could be summary lion or summary.

⬆ Back to top

---

Quick Start 🐵

1. Ensure you have Java 11 or above installed in your Computer. (How do I install Java 11? What is my Java version?)

2. Download the latest WildWatch.jar from here.

3. Copy the file into the folder you want to use as the home folder for your WildWatch.

4. Open a command terminal, cd into the home folder you put the jar file in, and run the following command: java -jar WildWatch.jar. You should see the welcome screen as the diagram below.

5. Type commands beside >>> and press Enter to execute it.
   (e.g. typing help and pressing Enter will show the help page).

____________________________________________________________
____    __    ____  __   __       _______
\   \  /  \  /   / |  | |  |     |       \
 \   \/    \/   /  |  | |  |     |  .--.  |
  \            /   |  | |  |     |  |  |  |
   \    /\    /    |  | |  `----.|  '--'  |
    \__/  \__/     |__| |_______||_______/
____    __    ____  ___   .___________.  ______  __    __
\   \  /  \  /   / /   \  |           | /      ||  |  |  |
 \   \/    \/   / /  ^  \ `---|  |----`|  ,----'|  |__|  |
  \            / /  /_\  \    |  |     |  |     |   __   |
   \    /\    / /  _____  \   |  |     |  `----.|  |  |  |
    \__/  \__/ /__/     \__\  |__|      \______||__|  |__|
____________________________________________________________
Hello there! Welcome to WildWatch!

Checking if "WildWatch.txt" already exists...
File does not exist.
Creating new file...
File created successfully.
What would you like to do?
____________________________________________________________
>>>

⬆ Back to top

---

Design & Implementation 🐸

System Architecture

The Architecture Diagram above shows a high-level overview of the architectural design of WildWatch.
Actual detailed implementation may differ from the architectural diagram.
(e.g., Parser in the diagram encompasses the Execute, Error, and Parser packages).

WildWatch is comprised of 7 major components.

• Main: Entry point of the program.
• UI: A package that receives input from, and prints output to the user.
• Parser: A package that processes and interprets the input command of the user.
• Command: A package that does specific task according to the command of the user.
• EntryList: A package that stores all the wildlife data, while the program is running.
• Entry: A package that stores individual wildlife data, while the program is running.
• Storage: A package that saves and retrieves all the wildlife data from the local storage

⬆ Back to top

The Generic Sequence Diagram above shows how the components in the architecture interact with each other for a generic command input in WildWatch.

✏ Note: Command here is a placeholder, and will be replaced by actual commands. e.g., ListCommand.

Main Component

The Main component, residing as a method in the WildWatch class, which is the only class without a package, is the entry point of the program.

⬆ Back to top

UI Package

The UI components can be found within the UI package.
It prompts and reads commands from the user and sends the command to Execute package to be executed.
Lastly, it prints an output message upon completion of the command, to show the success of failure of the command execution.

⬆ Back to top

Parser Package

The Parser components can be found within the Parser package.
It is responsible for parsing the input String of the user, and returning an appropriate XYZCommand class.
If the input is invalid, it throws exceptions to the Error package for error handling.
The Parser Class Diagram below shows how Execute, Parser, Error, Command classes of their respective packages work together.

⬆ Back to top

Command Package

The Command components can be found within the Command package.

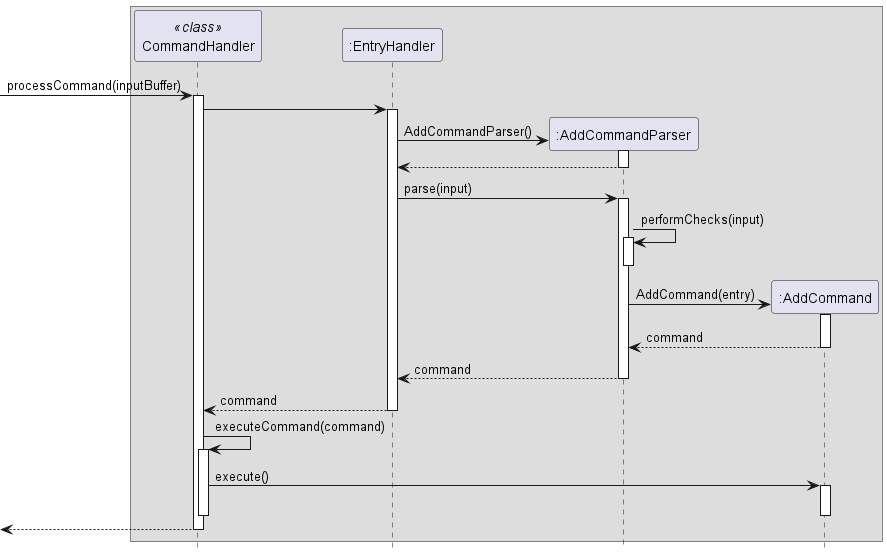

The above sequence diagram depicts how WildWatch executes an add command.

EntryList Package

The EntryList class can be found within the Entry package.
It is resposible for storing all the entry data in an static ArrayList class.
It is responsible for “getting” and “setting” values of individual Entry objects.

⬆ Back to top

Entry Package

The Entry class can be found within the Entry package.
Each Entry object holds the data of a single animal entry, residing in the static ArrayList maintained by EntryList class.

The class diagram above shows the relationship beteen the Entry, EntryList, and ArrayList classes.

⬆ Back to top

Storage Package

The Storage components can be found within the Storage package.
The components work together to read from previously saved file in the local memory.
The entry data is then loaded into the program.
If a valid command that changes the entry data is executed, the relevant changes are saved onto the local file.

The class diagram above shows the relationship between the different classes in the Storage package.

⬆ Back to top

---

Product scope 🦁

Target user profile

Target user profile for WildWatch is the clerks working in wildlife reserves, who manages the wildlife data. Since our program is interacted through the Command Line Interface (CLI), someone who can type fast will definitely benefit from WildWatch. This would significantly boost one’s productivity. Since clerks are already accustomed to typing and working with a computer, this program would be ideal for this user profile.

Value proposition

• Effortless User Experience: Designed with simplicity in mind, our product ensures that even users with minimal technical experience can easily navigate and interact with the software.
• Rapid CLI Interaction: Unlike traditional GUIs that require multiple clicks and drags, our Command Line Interface (CLI) offers direct command inputs, allowing for faster and more efficient operations.
• Light & Versatile: Built to be lean and light, our program ensures seamless performance across a variety of devices, as long as Java is installed, from high-end workstations to older laptops. Regardless of your computer’s specifications, our product guarantees a smooth and efficient functioning.
• Robust Data Protection: Say goodbye to the vulnerabilities of paper records! Our digital solution offers enhanced data protection, ensuring your records remain safe from damage, loss, or unauthorized access. With advanced encryption and backup mechanisms in place, your data’s safety is our priority.
• Eco-Friendly: Transition from paper to digital and contribute to a greener planet. Not only does this transition reduce clutter and the risk of loss, but it also significantly diminishes your carbon footprint.
• Cost-Effective: Eliminate the recurring costs of paper, printing, and storage. With our solution, you’ll experience a noticeable reduction in operational expenses while benefiting from advanced data management capabilities.

⬆ Back to top

---

User Stories 🦊

Version	As a …	I want to …	So that I can …
v1.0	new user	see help instructions	refer to them when I forget how to use the application
v1.0	zoo clerk	add an animal entry	record the animals in the zoo, and refer to them afterwards
v1.0	zoo clerk	delete an animal entry	remove redundant or invalid animal entry
v1.0	zoo clerk	list all the entries	see what entries I have entered previously, and refer to them
v1.0	zoo clerk	have an exit command	close the program safely
v2.0	zoo clerk	find an entry item by name	locate the entry I want, without having to go through the entire list
v2.0	zoo clerk	edit a command	change the entry contents to reflect the changes in the zoo
v2.0	zoo clerk	see a summary of all entries	have an idea of the entries at a glance
v2.1	zoo clerk	export the entries	easily move my data from one place to another

---

Non-Functional Requirements 🐯

1. Should be portable and working on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 wildlife records without a noticeable drop in performance for typical usage.
3. The average user who is familiar with typing on a keyboard should accomplish their tasks faster with WildWatch than a typical GUI app

⬆ Back to top

---

Manual Testing 🐼

1. Launching the App

• Refer to the Quick Start section to get WildWatch set up and running.

2. Getting help

• Run the help command by typing help and hitting the Enter key on your keyboard.

3. Adding a Wildlife Entry

• Run the following command add D/02-03-2023 S/Annam Leaf Turtle N/Ariel R/looks healthy.
  Expected: Wildlife recorded successfully added.

• Run the following command add D/02-03-2023.
  Expected: No new recorded added.

4. Listing Wildlife Entries

• Run the following command list.
  Expected: All wildlife records shown.

5. Editing a Wildlife Entry

• Run the following command edit I/1 D/02-05-2020 R/looks sick.
  Expected: Successfully edited the wildlife record.

• Run the following command edit I/-1 D/02-05-2020 R/looks sick.
  Expected: Failed to edit as -1 is not a valid index.

6. Deleting a Wildlife Entry

• Run the following command delete 1.
  Expected: Successfully deleted the first record.

• Run the following command delete 0.
  Expected: Failed to delete a record as 0 is an invalid record.

⬆ Back to top

7. Getting a summary of the wildlife data

• Run the following command summary.
  Expected: A summary of the wildlife record is displayed.

8. Exporting wildlife data to a local file

• Run the following command export myobservations.csv.
  Expected: You will be prompted with further questions, on exporting your data.

9. Exiting the app

• Run the bye command.
  Expected: WildWatch program terminates.

⬆ Back to top

---

Command Summary 🐻‍❄️

Action	Format
Getting Help	help
Adding Entries	add D/<DATE> S/<SPECIES> N/<NAME> {R/<REMARKS>}
Adding Entries (interactive)	add i/
Deleting Entries	delete <INDEX>
Finding Entries	find <SEARCH>
Editing Entries	edit I/<INDEX> {D/<DATE>} {S/<SPECIES>} {N/<NAME>} {R/<REMARKS>}
Summarizing Entries	summary {<SPECIES>}
Listing Entries	list
Exporting Entries	export {<FILENAME>}
Exit	bye

⬆ Back to top

---

Glossary 🐨

We are here to help you with terminologies used in the user guide, that may not be familiar to you.

Terminology	Meaning
Command Line Interface	A way to communicate with your computer using texts.
Home Folder	Folder in which your program resides

---

Acknowledgements 🐺

Reference - woodenclock
Reference - AB3 Developer Guide
Meet the people behind WildWatch!
